LC Miller Model "T" Water Cooled Coaxial Cable for Direct Mounting To Induction Heater Collet Output Terminal

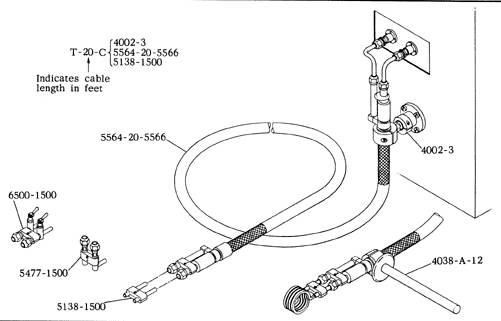

The model T-20-C Coaxial Cable incorporates all of the features of the TW-20-C described on the previous page that the cable is equipped with 3/8" copper tubing input terminals for direct mounting to the induction Heater, and is supported with a 4002-3 Cable Bracket.

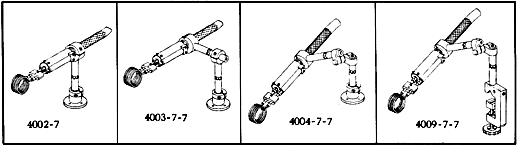

Model "R" Coaxial Cable Mounting Brackets are available in a variety of arrangements with either a pedestal base with screw holes for attaching to the desired surface or a clamp for clamping to a table edge, plate, rod or bar, and is adjustable to various positions.

The L.C. Miller Company specializes in design, repair and manufacture of custom coils and fixtures. Engineering assistance is available, without obligation, upon request.
